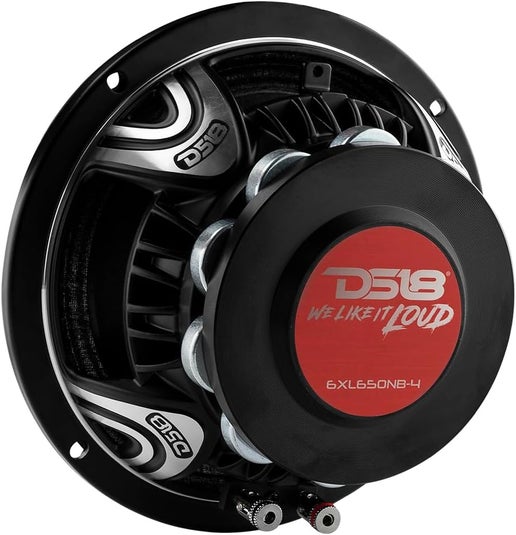

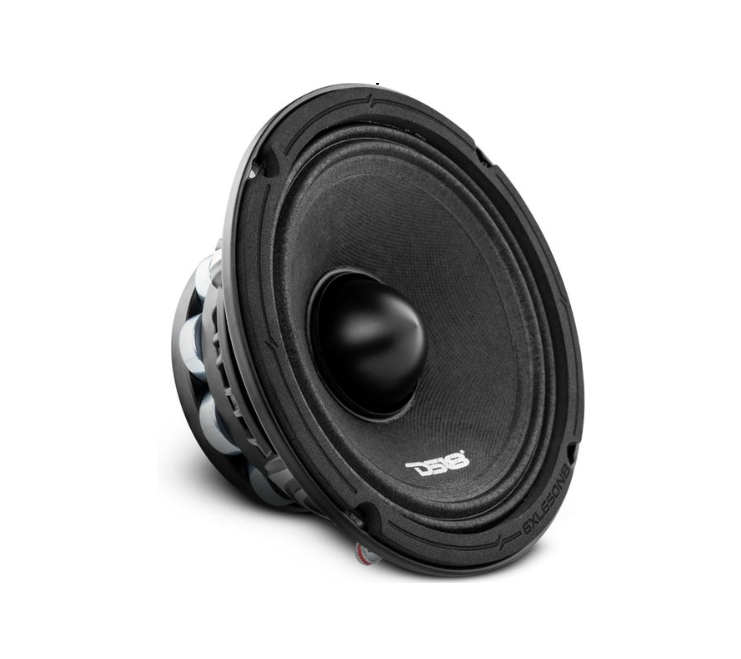

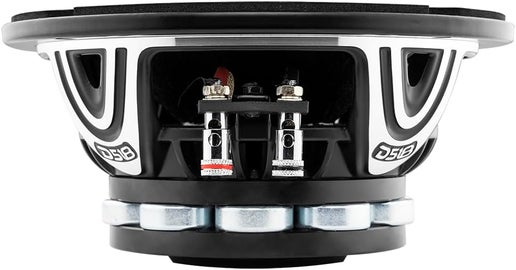

DS18 6XL650NB-4 PRO 6.5″ Neodymium Mid-Range Loudspeaker

SPECS

SKU
6XL650NB-4
Nominal Diameter
6.5″ / 165mm
Nominal Impedance
4 Ohm / 8 Ohm
RMS Power Handling
325 watts
MAX Power Handling
650 watts
Sensitivity (1w/1m)
97dB
Frequency Response
80Hz-12.5KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No

Motor

Voice Coil Diameter
2″ / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
N/A
Bullet Material
Aluminum
Bullet Color/Finish
Black
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium Rings
Magnet Weight
11.4 Oz
Displacement Volume
0.34L / 0.012ft3

Thiele & Small Parameters

Equivalent Volume
5.07L / 0.17ft3
Excursion (one way)
3.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.16
Electrical Factor
0.28
Total Factor
0.26
Mechanical Mass
9.11g
Mechanical Compliance
0.19mm/N
BL Factor
9.41
Voice Coil Inductance
0.05mH
Cone Area
136.85cm2
DC Resistance
3.5 ohm
Mechanical Mass w/o air
8.2g

Measurement

Overall Diameter
6.7″ / 170mm
Overall Depth
3.19″ / 81mm
Front Mount Baffle Cutout
5.9″ / 150mm
Mounting Depth
2.83″ / 72mm
Motor Diameter
4.13″ / 105mm
