Name: DS18 NXL 2-Channel Full-Range Class D IP67 Marine &amp; Powersports Amplifier 2 x 180 Watts Rms @ 4-Ohm (NXL-X360.2D)
SKU: 2606
Availability: InStock

DS18 NXL 2-Channel Full-Range Class D IP67 Marine & Powersports Amplifier 2 x 180 Watts Rms @ 4-Ohm (NXL-X360.2D)

$399.95

Discover unparalleled audio performance with the DS18 NXL 2-Channel Full-Range Class D IP67 Marine & Powersports Amplifier. Engineered for marine-grade durability, this amplifier ensures reliability in challenging environments, making it perfect for marine and powersports applications. With a robust power output of 2 x 180 Watts Rms @ 4-Ohm, experience crystal-clear sound quality that enhances your listening experience. The compact design of the NXL-X360.2D amplifier allows for versatile installation options without compromising on performance. Elevate your audio system with this powerhouse of sound technology.

GENERAL SPECIFICATIONS

SKU
NXL-X360.2D
Total Watts (Peak)
1000W
RMS Power @ 4 ohm
2 x 180W
RMS Power @ 2 ohm
2 x 250W
RMS Power @ 4 ohm Bridge
1 X 500W

AUDIO

Frequency Response
10Hz-20KHz
Signal to Noise Ratio 1W @ 4Ω
> 82dB
Efficiency @ 4 ohm
84%
Channel Separation
60dB
Total Harmonic Distortion (THD)
< 0.03%
Low Level Input Range
200mV-5V
Selectable X-Over
(HPF/Full/LPF)
X-Over Filter Range
40Hz-2KHz

FEATURES 1

Amplifier Class
Digital
Amplifier Type
Stereo Full Range
Number of Channels
2
Minimum Impedance
2 Ohms (Stereo) / 4 Ohms (Bridge)
Led Indicator
Power | Protection | Clip
Power Input Size
8GA Tinned OFC

FEATURES 2

Fuse Size
2 x 20A (40A)
Thermal Protection
Yes / (75°C)
Over-Load Protection
Yes
Short Circuit Output Protection
Yes
Voltage Input Protection
Yes (7-16V)
Body Color | Finish
Black Brushed Aluminum

EXTRA FEATURES

RCA Audio Output
Yes
Waterproof Rating
IP67
UV / Salt Fog Protection
Yes
Direct Power Harness Design
Yes
Quick Connect Plug
Yes
Surface Mount Component Technology
Yes

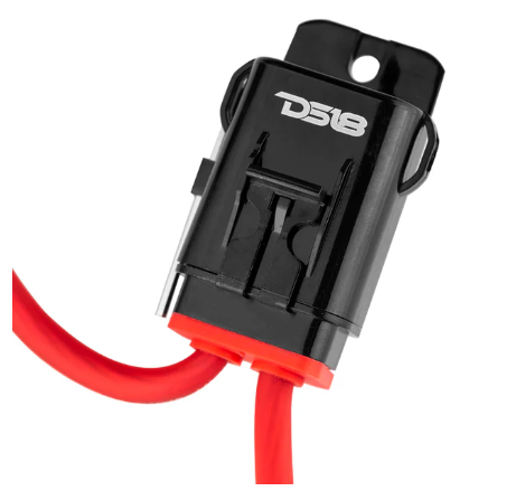

Marine Grade Fuse Holder
Yes

MEASUREMENT

Overall Length
8.3″ / 211mm
Overall Width
4.4″ / 112mm
Overall Height
1.77″ / 45mm
Heatsink Length
6.7″ / 171mm
Gross Single Unit Weight
1.6kg
Product Weight
4 lbs
Product Dimensions
12 x 9 x 3.75
M/C Weight
26 lbs
M/C Dimensions
23 x 13 x 10
M/C QTY
6
Sold In
Piece
